0.044W/0.064W/Φ3mm/red/yellow/green/blue

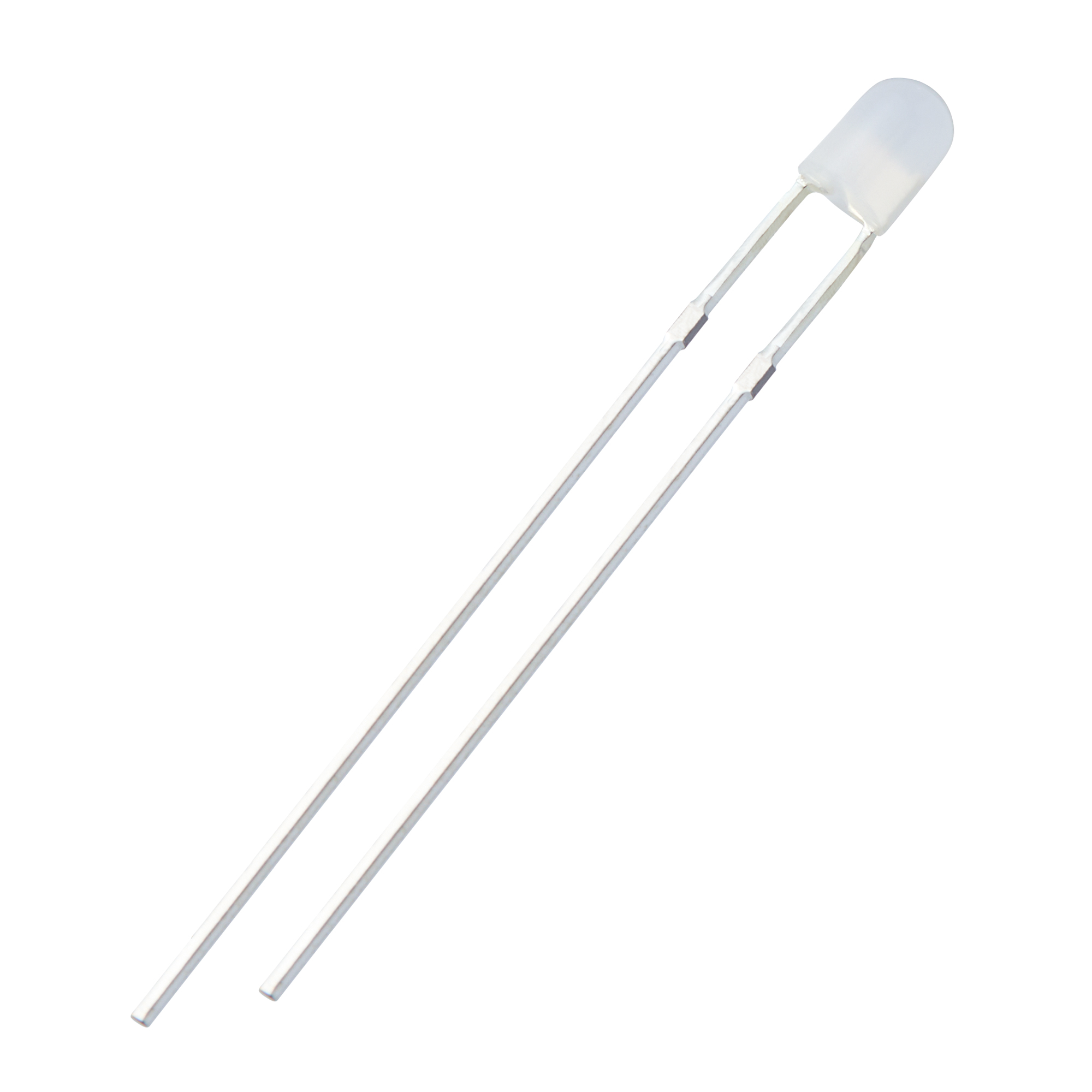

3mm Colored - Full-Range Signals
360° visibility for status indication.
Typical applications:
- Industrial status indicators
- Automotive interiors
- Security system alerts
- Consumer electronics
- Panel indicators
Product Details
GSZM™ Natural Light
①Safe light:To avoid the damage caused by blue light to the human eyes.
②Soft light:no dazzling, no glaring, and no ghosting.
③Comfortable light:uniform and soft light could create a warm and comfortable light environmet.
|
Product model |
colour |

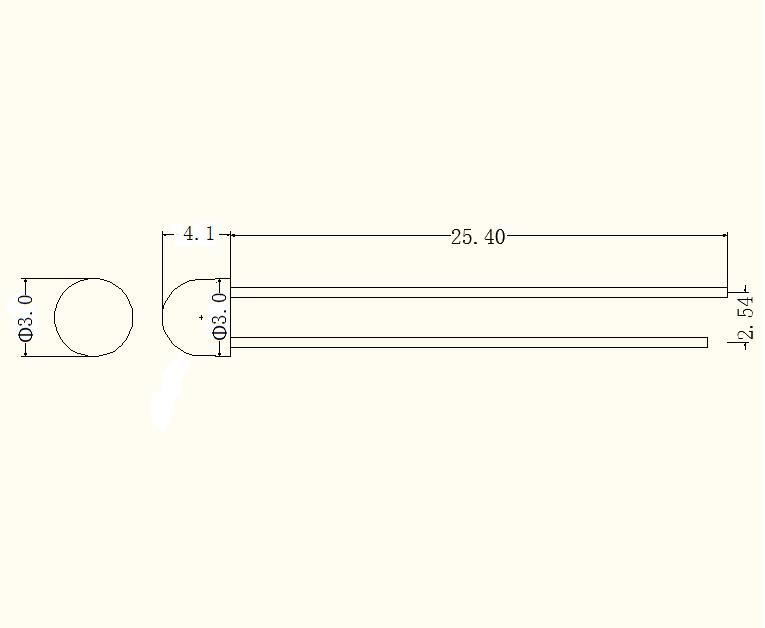

D*H (mm) |
P(W) |
Vf(V) |
If(mA) |
wavelength (nm) |
deg |
|
GS-0300R-360 |
Red |
3*4.1 |
0.044 |
1.8-2.6 |
20 |
620-630 |
360 |
|
GS-0300Y-360 |
Yellow |
3*4.1 |
0.044 |
1.8-2.6 |
20 |
585-595 |
360 |
|
GS-0300G-360 |
Green |
3*4.1 |
0.064 |
3.0-3.5 |
20 |
515-530 |
360 |
|
GS-0300B-360 |
Blue |
3*4.1 |
0.064 |
3.0-3.5 |
20 |
455-460 |
360 |
|
Remark |
Customizable products |
||||||
