0.064W/Φ4mm/white
4mm White - Compact Performance
Balanced size and light output.
Typical applications:
-Retail display lighting
-Instrument panel illumination
-Medical equipment lighting
-Control interface backlighting
-Task lighting
Product Details
GSZM™ Natural Light
① Safe light: To avoid the damage caused by blue light to the human eyes.
②Soft light: no dazzling, no glaring, and no ghosting.
③Comfortable light: uniform and soft light could create a warm and comfortable light environment.
|
Product model |
colour |

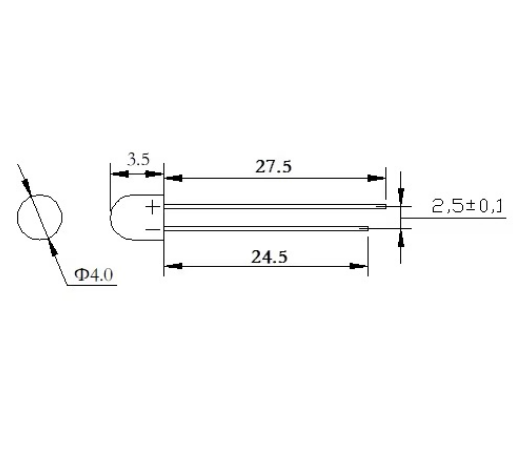

D*H (mm)
|
P(W) |
Vf(V) |
If(mA) |
Lm |
Ra |
K |
deg |
|
GS-0400WDK-360 |
White |
4*3.5 |
0.064 |
3.0-3.5 |
20 |
5-8 |
D |
K1-K6 |
360 |
|
GS-0400WGK-360 |
White |
4*3.5 |
0.064 |
3.0-3.5 |
20 |
5-8 |
G |
K1-K6 |
360 |
|
emarRk |
K： K1：2700-3000 K2：3000-3500 K3：3500-4500 K4：4500-5500 K5：5500-6500 K6：≥6500 Ra： G：Ra≥80 D：Ra≤80 Customizable products |
||||||||
